Part 3d printed in PA 2200 Carbon Reduced.
Roll over image to zoom in Click on image to zoom
Part 3d printed in PA 2200 Carbon Reduced.

PA 2200 CarbonReduced

Article Number: 9012-0200

100% proven quality and 45% less CO2e

Suitable for FORMIGA P 110 Velocis, EOS P 396, EOS P 770, P500

Contact sales

Description

This petrol-based polymer PA 2200 CarbonReduced has an elevated impact on climate. Following our purpose Responsible Manufacturing, we are constantly increasing the production efficiency of this material. Due to the use of renewable energies, the carbon footprint is almost 45% lower. This has no influence on its high quality and material composition

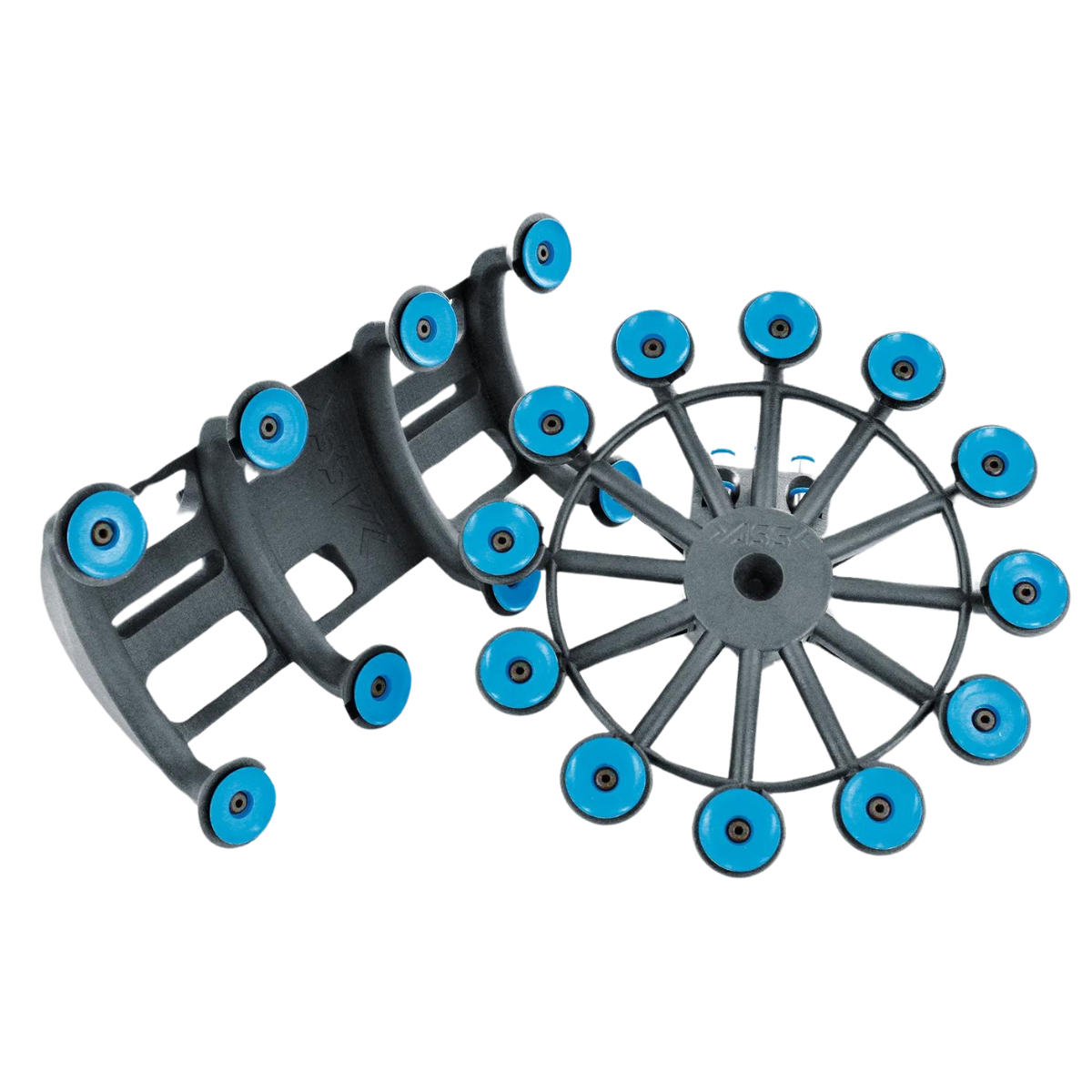

The image presents above lightweight robot hands: maximum weight of the robot hand of about 500g with reduction of the overall complexity (Source: ASS Maschinenbau GmbH).

Typical mechanical properties
Tensile modulus 1650 MPa
Tensile strength 48 MPa
Elongation at break 18%

Thermal properties
Melting temperature (20°C/min) 176°C
Heat deflection temperature (1.80 MPa) 70°C
Heat deflection temperature (0.65 MPa) 154°C

Physical properties
Density 930 kg/m³

The material is also available as standard PA 2200 with a higher carbon impact.

This cost-efficient general-purpose material is suitable for a variety of applications, including functional prototypes and qualified series production parts from the industry.

Safety Data Sheets can be found on myEOS
