HT-23

Typical mechanical properties
Tensile modulus: 6500 MPa
Tensile strength: 71 MPa
Elongation at break: 1,16 %

Thermal properties
Heat deflection temperature (1.82 MPa): 212 °C
Heat deflection temperature (0.45 MPa): 275 °C

Physical properties
Sintered Density: 1,39 g/cm³

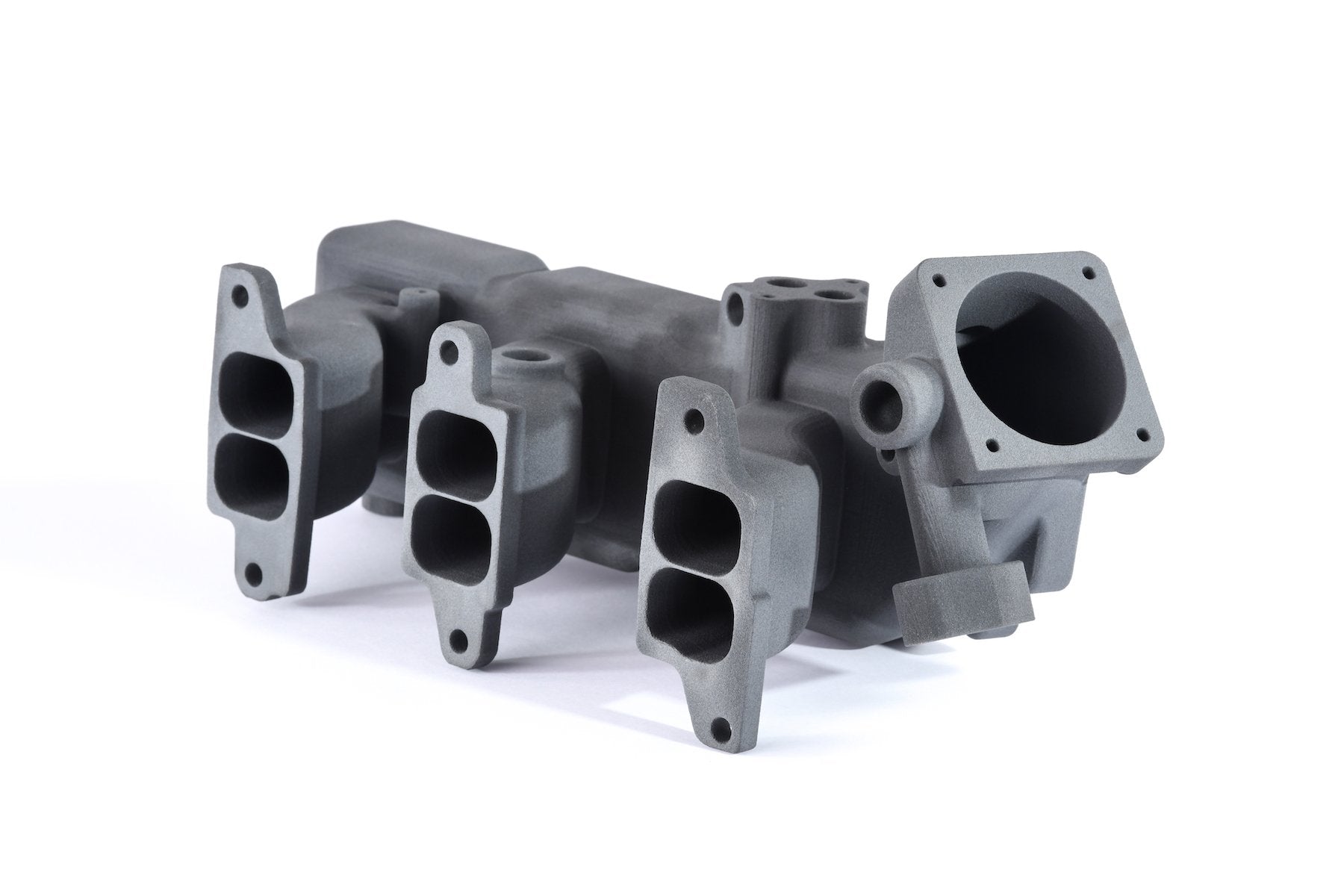

Aerospace
Mobility Industry
Well suited to applications which require superior thermal properties, with maximum performance and consistent properties in XY&Z dimensions

The data corresponds to our knowledge and experience at the time of publication. They do not ontheir own represent a sufficient basis for any design, neither do they provideany agreement about or guarantee the specific properties of a product or partor the suitability of a product or part for a specific application. It is the responsibility of the producer or customer of a part to check its properties as well as its suitability for a particular purpose. This also applies regarding the consideration of possible intellectual property rights as well as laws andregulations. The data are subject to change without notice as part of EOS`continuous development and improvement processes.

Material Datasheet
