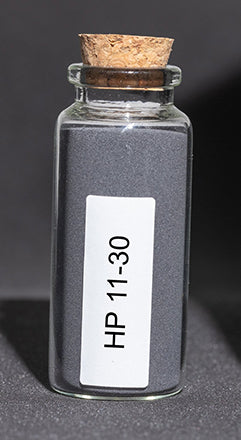

HP 11-30 - Polyamide 11

Article Number: 200000932

Suitable for EOS P 396.

Best suited to applications which require superior thermal properties with maximum performance in XY&Z dimensions.

Description

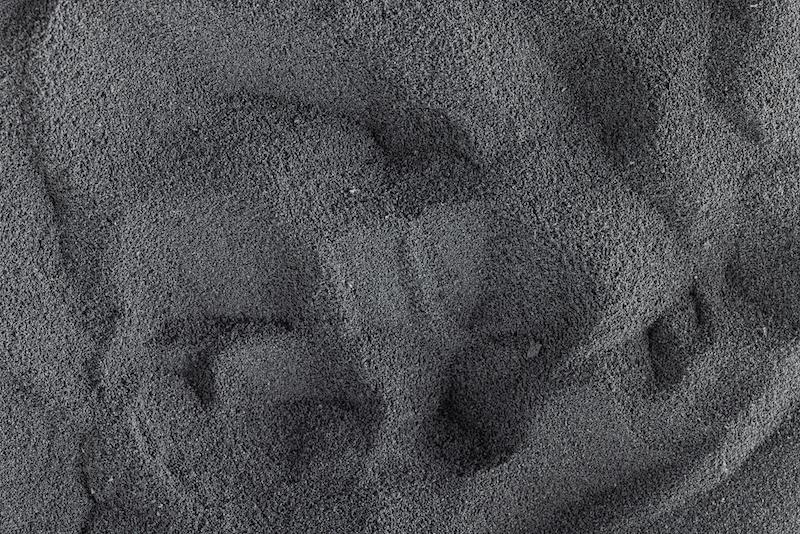

Well suited to applications which require superior thermal properties, with maximum performance and consistent properties in XY&Z dimensions. It is a melt compounded carbon fiber-filled PA11 with isotropic properties, high stiffness, high tensile strength, and is electrostatically dissipative.

Typical mechanical properties
Tensile modulus: 3300 MPa
Tensile strength: 56 MPa
Elongation at break: 9 %

Physical properties
Sintered Density: 0,45 g/cm³

Under hood components
Wind tunnel display models
Well suited to applications which require superior thermal properties, with maximum performance and consistent properties in XY&Z dimensions

The data corresponds to our knowledge and experience at the time of publication. They do not on their own represent a sufficient basis for any design, neither do they provide any agreement about or guarantee the specific properties of a product or part or the suitability of a product or part for a specific application. It is the responsibility of the producer or customer of a part to check its properties as well as its suitability for a particular purpose. This also applies regarding the consideration of possible intellectual property rights as well as laws and regulations. The data are subject to change without notice as part of EOS' continuous development and improvement processes.
