EOS CopperAlloy CuCrZr

Name: EOS CopperAlloy CuCrZr
Brand: EOS
SKU: 9030-0003
Price: 1020.0 EUR
Availability: InStock

Article Number: 9030-0003

Suitable for
AMCM M 290 1kW @ 80 µm,
EOS M 400 @ 80 µm

High productivity
Moderate to high conductivity
Good mechanical properties

Available in 400 kg Big Bag packaging

Pack Size: 10 kg

Variant

Price:

€1.020,00

Quantity:

Please Note: We currently only sell to businesses, not individual consumers.

Contact sales

EOS CopperAlloy CuCrZr has a favorable combination of electrical and thermal conductivity accompanied with good mechanical properties. This alloy reaches its good properties during heat treatment.

Learn more about EOS Metal Solutions

The chemical composition in compliance with C18150 and CW106C
Ultimate Tensile Strength 300 MPa
Yield Strength 200 MPa
Elongation @ Break 30%
Electrical conductivity in heat treated state ~85% IACS

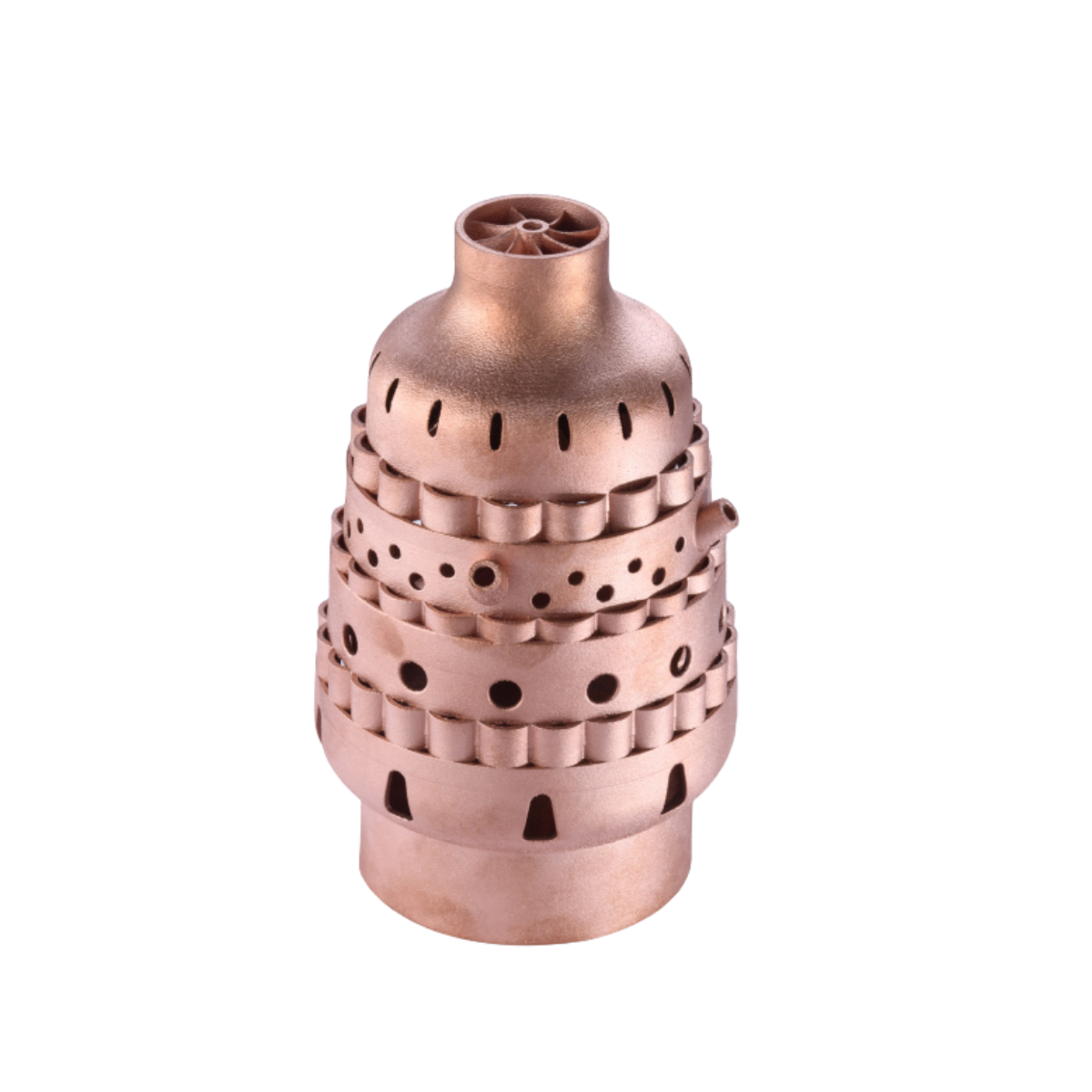

Rocket engine parts
Heat exchangers
Induction coils

Material Datasheet

Safety Data Sheets can be found on myEOS
