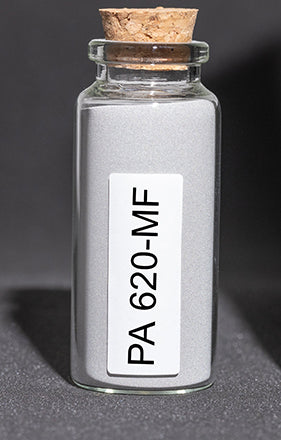

PA 620-MF

ALMArticle Number: 9015-0013

Optimized for high performance and easy to process with high temperature tolerance and high detail surface finish

Contact sales


25% Mineral-Filled Nylon 12 optimized for easy processing and as a drop-in replacement for comparable Fiber-Filled Nylon 12’s High stiffness properties for load bearing applications Mineral fiber filled nylon 12 with good dimensional stability and a high tensile modulus and HDT. It has higher recyclability compared to competitive materials High electrical and fatigue resistance

Typical mechanical properties
Tensile modulus (XY): 5725 MPa
Tensile strength (XY): 51 MPa
Elongation at break: 5%

Thermal properties
Heat deflection temperature (1.82 MPa): 179 °C³
Heat deflection temperature (0.45 MPa): 184 °C³

Physical properties
Sintered Density: 1,2 g/cm³³

Housings and enclosures
Rapid tooling applications
Aerospace and motor sports

The data corresponds to our knowledge and experience at the time of publication. They do not on their own represent a sufficient basis for any design, neither do they provide any agreement about or guarantee the specific properties of a product or part or the suitability of a product or part for a specific application. It is the responsibility of the producer or customer of a part to check its properties as well as its suitability for a particular purpose. This also applies regarding the consideration of possible intellectual property rights as well as laws and regulations. The data are subject to change without notice as part of EOS' continuous development and improvement processes.
