EOSArticle Number: 2200-4396
Contact Sales

Please Note: We currently only sell to businesses, not individual consumers.

Description

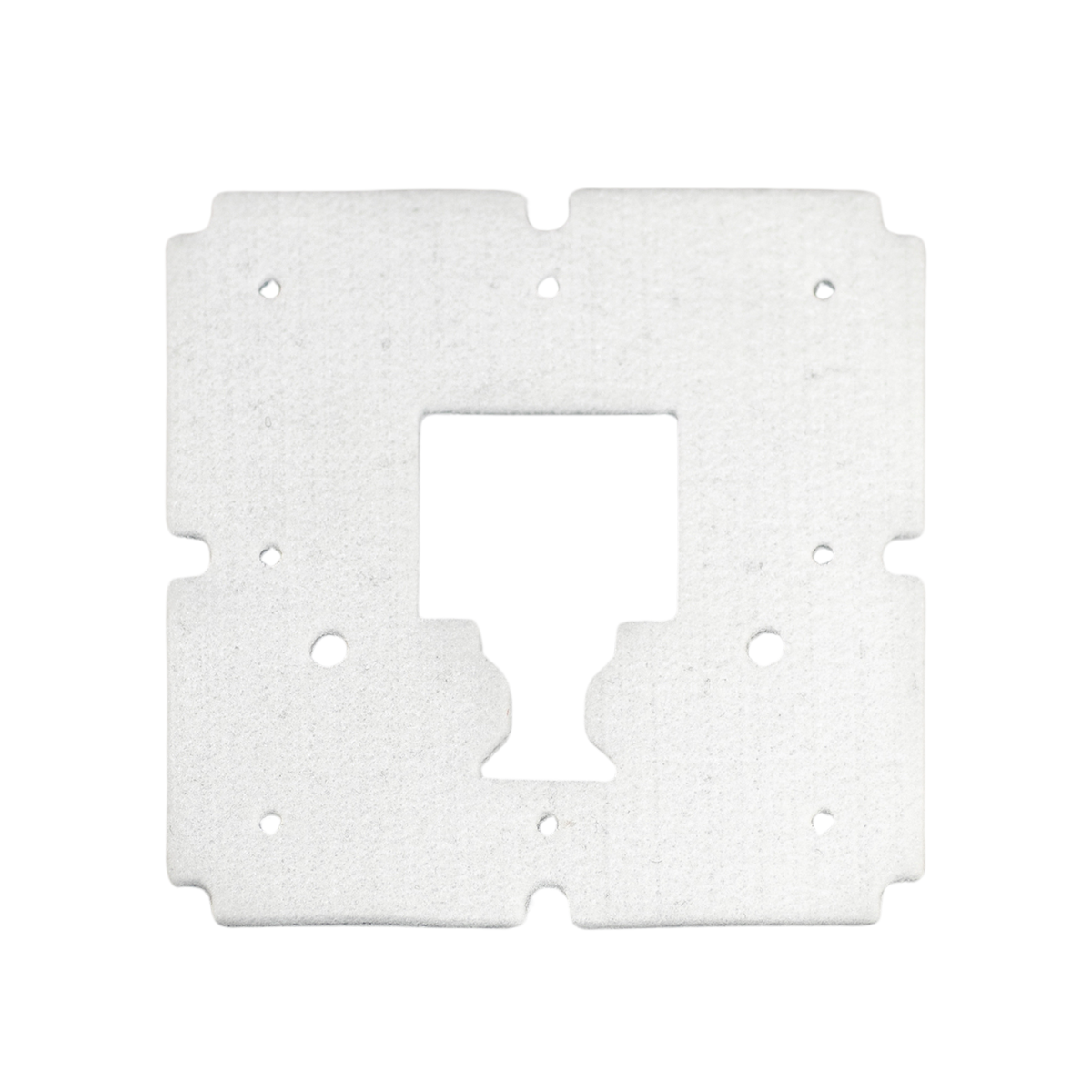

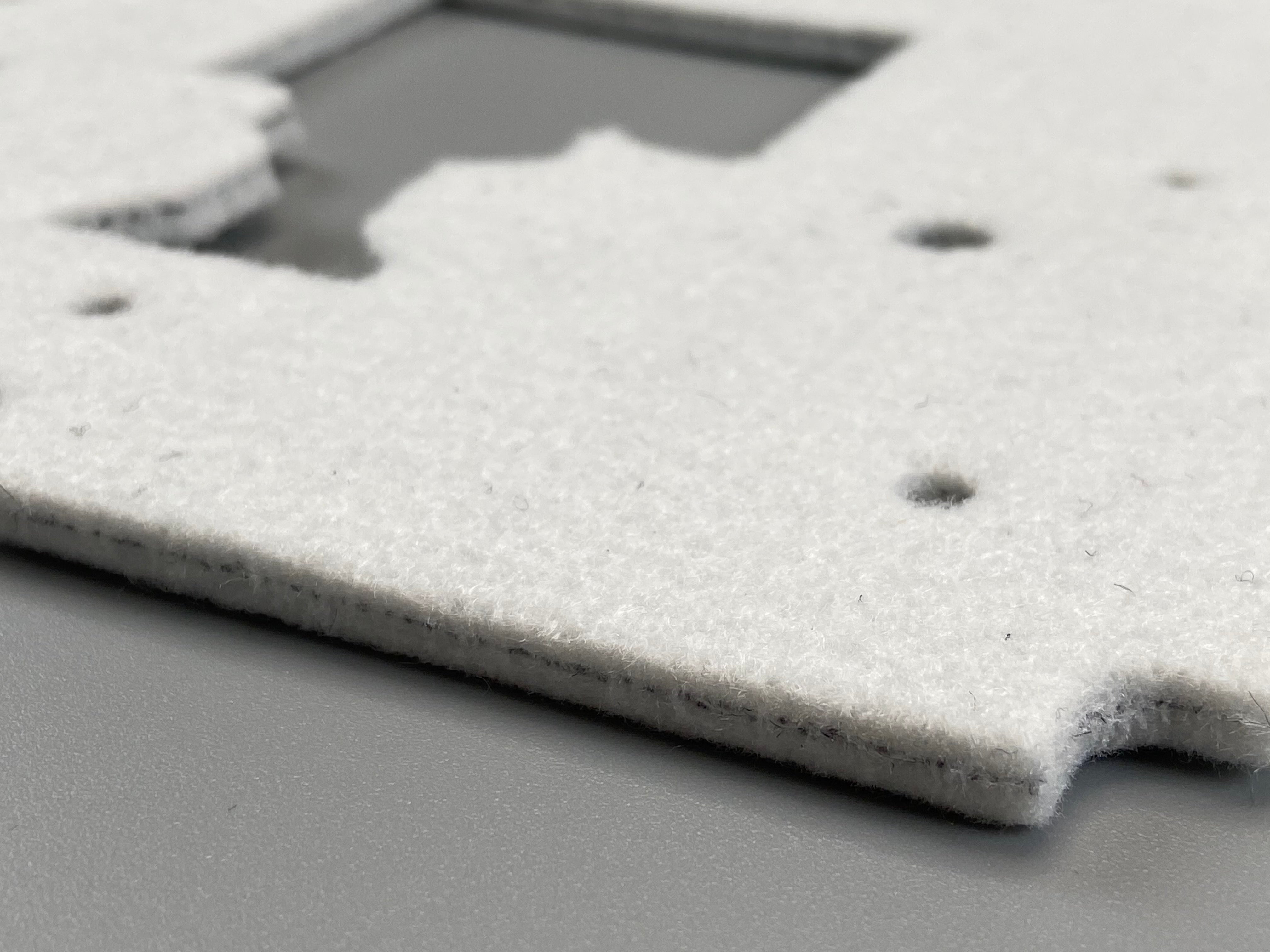

This felt seal is located on the axis, in the center of the extraction chamber and is fixed between two metal plates. This product is compatible with P 110.

To replace the seal, loosen the outer nuts of the metal plate and remove the cleaning attachment with a nut from the back of the Z-axis. After the platform carrier has been disassembled, the seal must be pulled away upwards. Finally, remove the inner nut of the plate and remove the felt seal. The installation is carried out chronologically to the dismantling.
